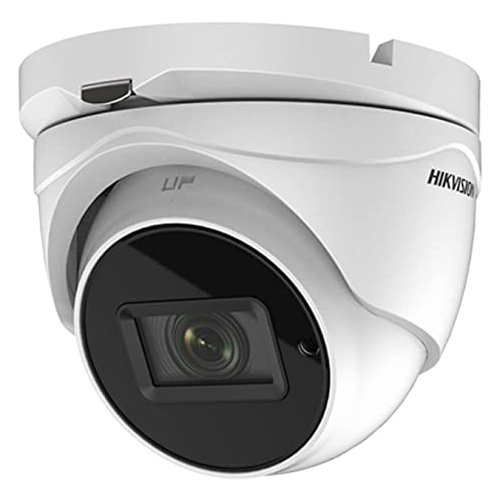

The Hikvision DS-2CE56H0T-IT3ZF is a professional high-resolution analog-turret camera engineered for demanding surveillance installations. With a 5-megapixel sensor delivering up to 2560×1944 resolution, the camera captures detailed imagery suitable for wide-area or critical coverage. The motorised varifocal lens (2.7–13.5 mm) allows installers and users to remotely adjust zoom and focus, tailoring the field of view from a broad panorama to a tighter scene. IR illumination rated up to 40 metres (via EXIR 2.0 technology) ensures reliable performance in very low-light situations. For installation flexibility, the output format is switchable across HDTVI, AHD, CVI and CVBS—making it compatible with a broad range of existing analog systems. With IP67-rated weatherproof housing, a durable metal build, and an operating temperature range from -40 °C to +60 °C, the DS-2CE56H0T-IT3ZF is well suited for outdoor and industrial environments. Whether upgrading legacy coax systems or deploying new high-definition analog coverage, this model offers a strong combination of resolution, optics and robustness.
Key Features
5 MP Ultra-High Definition: Captures up to 2560×1944 resolution to deliver greater detail.
Motorised Varifocal Lens (2.7-13.5 mm): Enables remote adjustment of field of view for flexible installation.
EXIR 2.0 IR up to 40 m: Provides effective night-vision under low or no ambient light.
4-in-1 Analog Output Compatibility: Switchable between TVI, AHD, CVI, CVBS for integration with different DVRs.
Outdoor-Rugged Construction: IP67 rated, metal housing, wide temperature range – built for harsh conditions.
Technical Specifications Table
| Feature | Details |
|---|---|
| Product Name | Hikvision DS-2CE56H0T-IT3ZF |
| Model | DS-2CE56H0T-IT3ZF |
| Image Sensor | 5 MP CMOS image sensor |
| Maximum Resolution | 2560 × 1944 (5 MP) |
| Lens | Motorised varifocal 2.7–13.5 mm |
| Field of View (H-FOV) | Approx. 95.7° (at 2.7 mm) to 29.1° (at 13.5 mm) |
| IR Illumination | Up to ~40 m via EXIR 2.0 |
| Output Formats | Switchable: TVI / AHD / CVI / CVBS |
| Ingress Protection | IP67 (water & dust resistant) |
| Operating Conditions | -40 °C to +60 °C |
| Power Supply & Consumption | 12 V DC ±25%, max ~6.3 W |
FAQ Section
1. Will this camera work with my existing analog DVR?
Yes — the DS-2CE56H0T-IT3ZF supports HDTVI/AHD/CVI/CVBS output formats, allowing compatibility with a wide range of analog DVRs.
2. Is it suitable for outdoor installation in hot and humid climates like Chennai?
Yes — with an IP67-rated housing and an operating temperature range of -40 °C to +60 °C, it is designed for robust outdoor use in challenging environments.
3. What is the benefit of the motorised varifocal lens?
The motorised 2.7–13.5 mm lens allows remote adjustment of zoom/focus, enabling installers and users to fine-tune the field of view without physical repositioning.
4. How far does the IR night vision reach?
The camera uses EXIR 2.0 IR technology rated up to approximately 40 metres under ideal conditions.
5. Does the higher resolution (5 MP) matter if my DVR only records at 1080p?
Yes — even if you record at 1080p, the higher resolution sensor provides better detail and allows greater cropping or digital zoom while maintaining usable image quality.
